tl;dr

Pay-to-Multisig (P2MS) is Bitcoin's original multisig format, since superseded by more efficient alternatives like P2SH and P2WSH. Even so, it persisted - and still persists - as a vehicle for data carriage, with multiple protocols embedding payloads into fake pubkeys inside Bitcoin transactions. Three major protocols dominate this practice: Bitcoin Stamps, Counterparty and Omni.

Bitcoin Stamps employs ARC4 obfuscation (TXID-keyed) and can be identified by distinctive Key Burn patterns in the original pub keys (0x0222..., 0x0333..., etc). A protocol identifier, e.g., stamp:, appears only once in the deobfuscated key data. Bitcoin Stamps uses 1-of-3 P2M outputs, with one Key Burn pubkey and two data pubkeys per output, so no private keys exist that can spend the output.

Counterparty also uses ARC4 obfuscation (TXID-keyed) but is identified by the string CNTRPRTY being present in the deobfuscated key data. The identifier appears once per ARC4-obfuscated output, so multi-output transactions sacrifice data carrying efficiency. Counterparty maintains at least one real pubkey per output in its 1-of-2 or 1-of-3 configurations, so most Counterparty-related P2MS outputs remain spendable in theory (apart from Classic Stamps).

Omni distinguishes itself through obfuscation based on SHA-256+XOR, keyed to the sender's address, and identification via the Exodus address (1EXoDusj...) in adjacent transaction outputs. Omni also maintains valid pubkeys in its 1-of-2 or 1-of-3 structures, so all Omni P2MS outputs can also be spent (again, in theory).

A number of minor protocols also leverage P2MS for data carrying purposes, including protocols using identifiers such as CHANCECO (Chancecoin), TB0001, TEST01 and METROXMN. Additionally, several protocols employ hybrid approaches that use P2MS alongside OP_RETURN. PPk (PPkPub) uses the combined data-carrying capacity of P2MS outputs + OP_RETURN, with a distinctive marker pubkey for identification, whereas others use OP_RETURN outputs for explicit protocol signalling with the larger storage capacity of P2MS outputs used for the data payload (e.g., "Protocol 47930", CLIPPERZ). Beyond protocol-based approaches, P2MS has also been used for generic data storage, with notable examples including the Bitcoin whitepaper PDF and Wikileaks Cablegate files.

Introduction

This post is the first in a series of posts that will explore how the Bitcoin blockchain is used for data carriage. Data carriage refers to the practice of embedding arbitrary, non-financial data into Bitcoin transactions and storing it permanently on the blockchain. Data carriage is a controversial topic in the Bitcoin community, with some viewing it as a legitimate use case for the blockchain, while others see it as an abuse of the system that adds blockchain bloat and raises costs for everyone.

While there are many ways to embed data in Bitcoin transactions, this and the following posts will explore the use of Pay-to-Multisig (P2MS) script types for data carriage. This instalment explains the fundamentals of P2MS and how it's used for data carriage while Part 2 examines the magnitude of P2MS data carriage via an analysis of a snapshot of the UTXO set. Note that this post goes into detail in breaking down examples of the various protocols; these examples are collapsed by default but can be expanded.

The use of P2MS script types seemed like a good place to start because:

It's the legacy script type for multisig that has long been superseded by other script types that enable multisig, including P2SH and P2WSH, with these newer script types being more economical to use.
Given the above, there's no real reason for anyone to use P2MS for multisig, yet it is still used, for data carriage.
There's been a significant increase in P2MS UTXOs since early 2023 as per Figure 1, yet the encumbered value remains tiny.
P2MS data carrying is regularly used, albeit much less so than other approaches (e.g., P2TR-based approaches), but it remains understudied compared to other approaches.

There have been a number of analyses of data carriage in Bitcoin, but they generally focus on the other data carriage methods. Pay-to-Fake-Multisig (P2FMS) as the use of P2MS for data carriage is sometimes called, is often just a side note. See the References section for links to some of these other analyses.

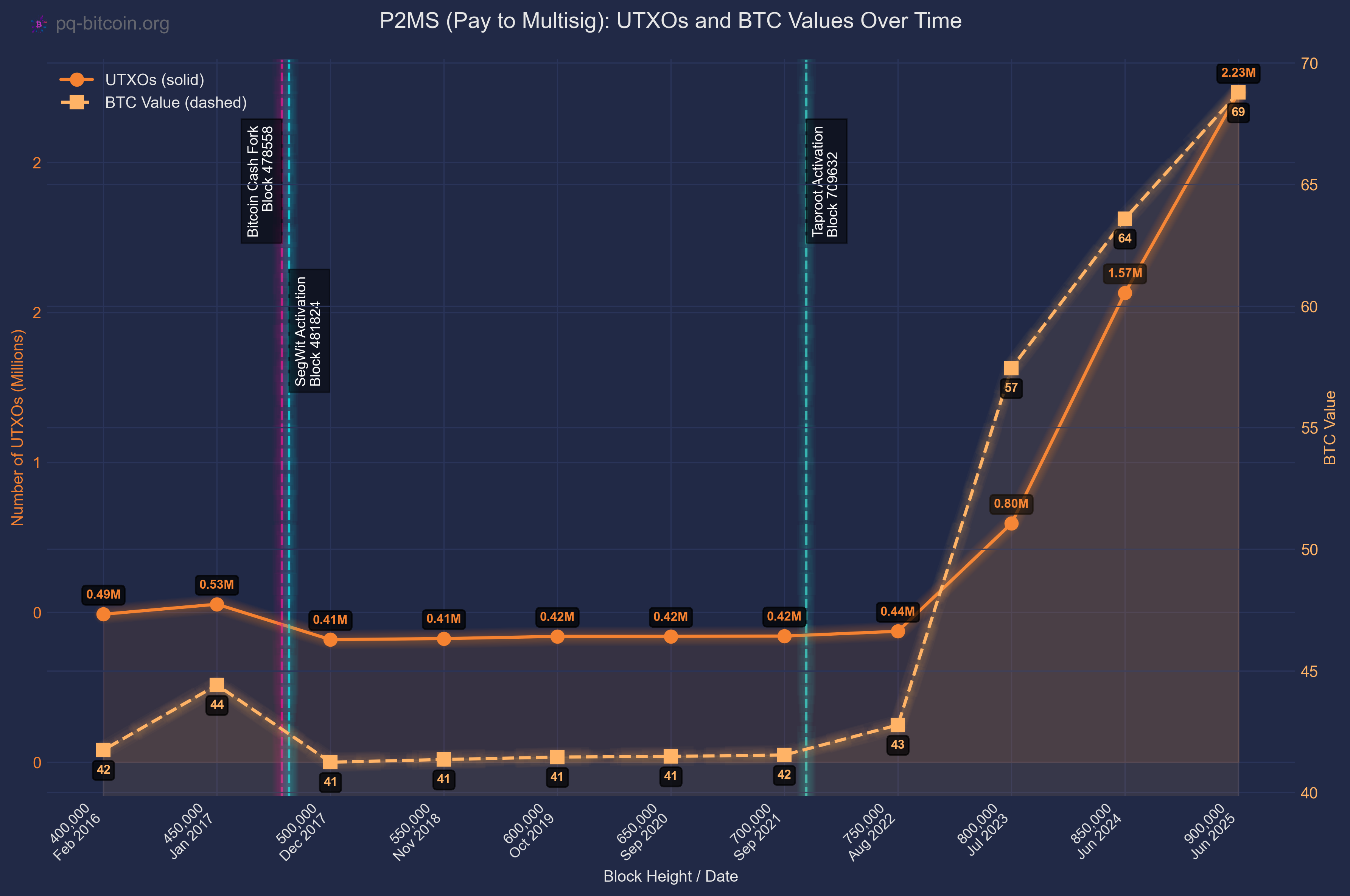

Figure: the number of P2MS UTXOs and encumbered value over time (block height increments of 50,000). — **Figure 1:** the number of P2MS UTXOs and encumbered value over time (block height increments of 50,000).

P2MS fundamentals

P2MS is a script type that allows users to lock bitcoins to multiple (n) public keys, and require signatures for some or all (m) of those public keys to unlock and spend; an m-of-n multisig. P2MS is sometimes referred to as raw or bare multisig, as the public keys used to create the lock are directly accessible in the locking script (the ScriptPubKey). This is in contrast to the more modern multisig constructs of P2SH and P2WSH where the public keys used to create the lock are obfuscated by hashing before being input into the locking script.

Here's an example of a recent transaction from block height 903,379 (June 2025) that features two P2MS outputs that are relevant to the following content: eb96a65e...

The ScriptPubKey of the first P2MS output is:

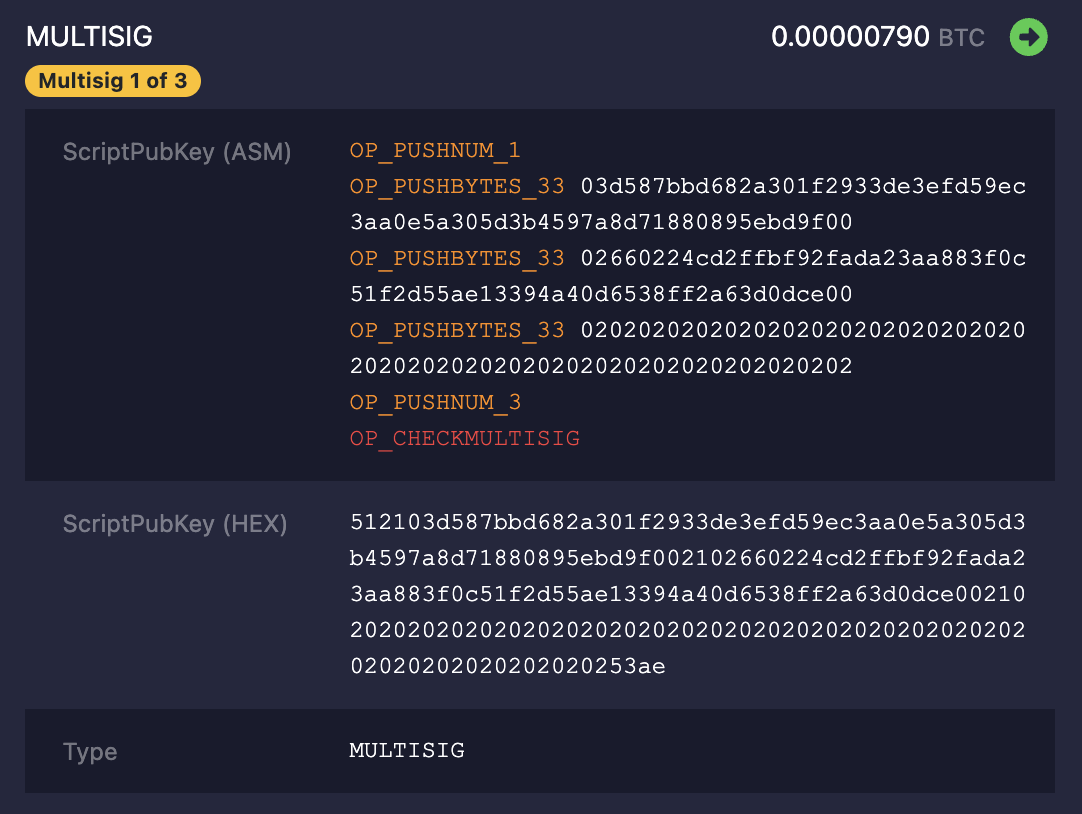

Figure: the first P2MS output as shown on mempool.space. — **Figure 2:** the first P2MS output as shown on mempool.space.

512103d587bbd682a301f2933de3efd59ec3aa0e5a305d3b4597a8d71880895ebd9f002102660224cd2ffbf92fada23aa883f0c51f2d55ae13394a40d6538ff2a63d0dce002102020202020202020202020202020202020202020202020202020202020202020253ae

This ScriptPubKey is 105 bytes, comprised of the following:

OP_1 (51), this is m in the m-of-n multisig
3x sets of OP_PUSHBYTES_33 (21) followed by 33-byte public keys
- 21 03d587bbd682a301f2933de3efd59ec3aa0e5a305d3b4597a8d71880895ebd9f00
- 21 02660224cd2ffbf92fada23aa883f0c51f2d55ae13394a40d6538ff2a63d0dce00
- 21 020202020202020202020202020202020202020202020202020202020202020202
OP_3 (53), this is n in m-of-n, so it's a 1-of-3 multisig
OP_CHECKMULTISIG (ae)

Those first two public keys on the surface look like they could be proper public keys, but that 3rd key looks "fake". Indeed, even mempool.space indicates as such, what's the deal with that?

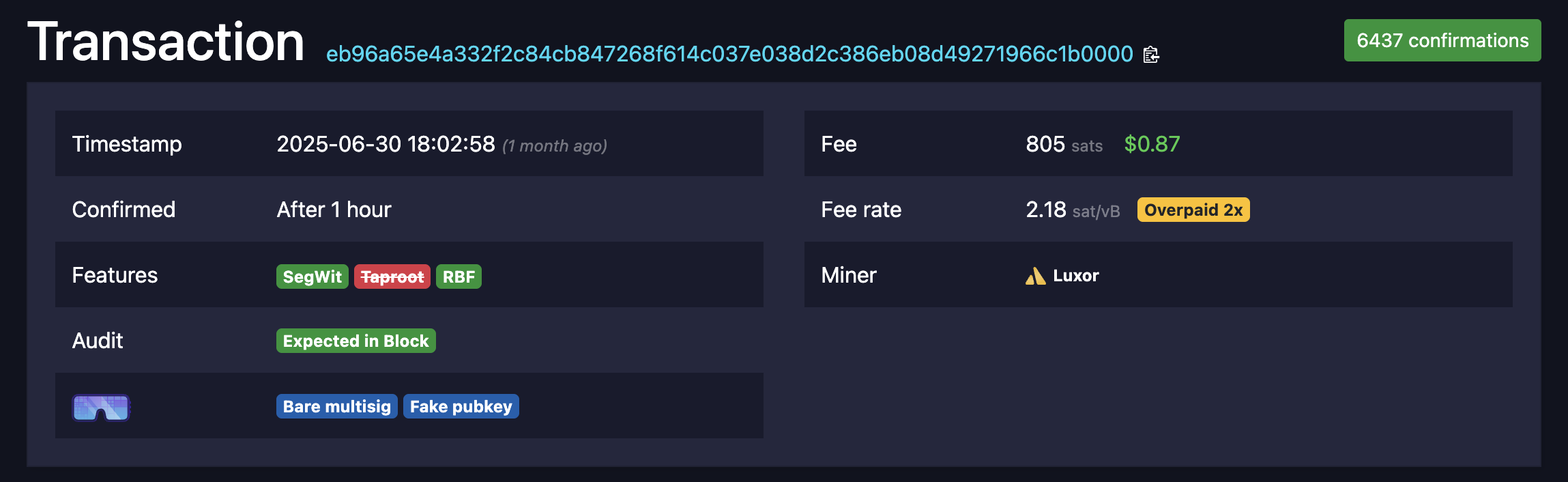

Figure: mempool.space marking the P2MS as having a fake pubkey. — **Figure 3:** mempool.space marking the P2MS as having a fake pubkey.

Fake keys

The 3rd key is indeed a fake key in the sense that it's not a public key that has a known corresponding private key. This fake key, 020202020202020202020202020202020202020202020202020202020202020202, is actually one of the Key Burn addresses that are used by Bitcoin Stamps, one of the leading data carrying protocols that use P2MS.

The ability to generate predetermined patterns of public keys such as Key Burn addresses in this instance, or burn addresses in general, is almost impossible because it requires generating a private key that leads to the desired public key. Said another way, the probability of arriving at a pre-determined pattern for an ECC-256 public key is "infinitesimally small to the point where a computer would need to grind away at keys for billions of years in order to produce a valid private key" Bitcoin Stamps.

Because of the near impossibility of generating a private key that leads to a predetermined pattern in a public key, the existence of a highly improbable patterned public key is accepted as evidence that there is no corresponding private key... and that the key cannot be used to spend the output!

According to the official Bitcoin Stamps protocol documentation, there are 4 Key Burn addresses/patterns/public keys:

022222222222222222222222222222222222222222222222222222222222222222
033333333333333333333333333333333333333333333333333333333333333333
020202020202020202020202020202020202020202020202020202020202020202
030303030303030303030303030303030303030303030303030303030303030303

The Key Burn technique assigns one of the above Key Burn keys to last key position in the 1-of-3 multisig, leaving the first two keys as possibilities to spend the output.

The first two keys, however, are actually the data-carrying component (as we shall later learn from understanding how Bitcoin Stamps works), although we can't always definitively prove that they represent "fake" public keys. That is, we can run a check to see if a given public key is a valid point on the ECDSA secp256k1 curve, if it is not, we know that it is truly a fake public key, yet if it is a valid point, then it could either be a true key or just "data" that happens to correspond to a point on the curve!

For example, using the 1st and 2nd keys above:

1st key: 03d587bbd682a301f2933de3efd59ec3aa0e5a305d3b4597a8d71880895ebd9f00 is a valid point
2nd key: 02660224cd2ffbf92fada23aa883f0c51f2d55ae13394a40d6538ff2a63d0dce00 is NOT a valid point

CODE: Python code to validate a public key on the secp256k1 curve

# Validate public key on secp256k1 curve
# Returns True if point (x,y) satisfies: y² = x³ + 7 (mod p)
p = 0xFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFEFFFFFC2F
def is_valid_pubkey(pubkey_hex):
    """Check if public key is valid point on secp256k1"""
    pub_bytes = bytes.fromhex(pubkey_hex)
    if len(pub_bytes) == 33:  # Compressed
        prefix, x = pub_bytes[0], int.from_bytes(pub_bytes[1:], 'big')
        y_squared = (pow(x, 3, p) + 7) % p
        y = pow(y_squared, (p + 1) // 4, p)
        if pow(y, 2, p) != y_squared:
            return False
        # For any valid x, there are two valid y values: y and p - y
        # If calculated y doesn't match prefix parity, use the other root
        if (y % 2 == 1) == (prefix == 0x02):
            y = p - y
        return (y % 2 == 0) == (prefix == 0x02)
    elif len(pub_bytes) == 65:  # Uncompressed
        x = int.from_bytes(pub_bytes[1:33], 'big')
        y = int.from_bytes(pub_bytes[33:], 'big')
        return (pow(y, 2, p) - pow(x, 3, p) - 7) % p == 0
    return False# Usage: is_valid_pubkey("03d587bbd682a301f2933de3efd59ec3aa0e5a305d3b4597a8d71880895ebd9f00")

Suffice it to say, checking whether a given public key is a valid point on the ECDSA secp256k1 curve is insufficient to definitely prove that the key is data or otherwise - sometimes a public key will be a valid point yet it just represents data (as with the 1st key above).

We have yet to see how keys can represent data; let’s examine how data is embedded.

Data carrying in P2MS - A Bitcoin Stamps example

Note that the following is provided to give a concrete example of how Bitcoin Stamps embeds arbitrary, non-financial data into Bitcoin transactions; the aim is not to cover the minutiae of how such protocols operate at a higher level (e.g., deploying, minting, transferring etc.).

Bitcoin Stamps inserts data into 1-of-3 P2MS transaction outputs, with the data encoded to look like public keys for the first two keys ("data keys"), and a Key Burn address used for the third. Setting the Key Burn address aside, with compressed public keys being 33 bytes, the first and last bytes are stripped from each of the data keys, leaving 31 bytes apiece. Concatenate the byte strings into a single 62-byte string:

d587bbd682a301f2933de3efd59ec3aa0e5a305d3b4597a8d71880895ebd9f +
660224cd2ffbf92fada23aa883f0c51f2d55ae13394a40d6538ff2a63d0dce

If the transaction contains two or more P2MS outputs, then the above process is followed for each output: take the first two public keys, disregard the Key Burn, strip bytes and concatenate the data key byte strings. Then concatenate such strings from each transaction output into a single byte string.

For our example transaction, there's a 2nd multisig output that has the following data keys:

03e34afbaa13450d01f91c6633f7e9cd5893c6096f9087b347a2479c7add951700
02ae587815be570ac6344c49be194daa07e4b8de982f16c8175a981cd0ff4d2200

Stripped:

e34afbaa13450d01f91c6633f7e9cd5893c6096f9087b347a2479c7add9517 +
ae587815be570ac6344c49be194daa07e4b8de982f16c8175a981cd0ff4d22

Concatenating the byte string from the first and second output yields the following 124-byte string:

d587bbd682a301f2933de3efd59ec3aa0e5a305d3b4597a8d71880895ebd9f +
660224cd2ffbf92fada23aa883f0c51f2d55ae13394a40d6538ff2a63d0dce +
e34afbaa13450d01f91c6633f7e9cd5893c6096f9087b347a2479c7add9517 +
ae587815be570ac6344c49be194daa07e4b8de982f16c8175a981cd0ff4d22

The resulting byte string can now be decoded into meaningful data. Bitcoin Stamps uses the ARC4 (RC4) stream cipher to obfuscate the original data before embedding it, with a key that is the transaction ID (TXID) corresponding to the first transaction input (vin[0]). For our example transaction eb96a65e..., the TXID corresponding to the first transaction input is:

7568f57ecf417e19edefc810f9bbd34d2a62eb770d8492396ceffed3c5dc7348

Via:

bitcoin-cli getrawtransaction eb96a65e4a332f2c84cb847268f614c037e038d2c386eb08d49271966c1b0000 | xargs bitcoin-cli decoderawtransaction | jq '.vin[0].txid'

Using 7568f57e... as the deobfuscation key, the byte string is deobfuscated to the following. Note that ARC4 being a stream cipher means that deobfuscation preserves length - 124 bytes in, 124 bytes out.

003f7374616d703a7b2270223a227372632d3230222c226f70223a227472616e73666572222c227469636b223a22424d574b222c22616d74223a2231303030227d0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

The first two bytes, 003f, is the length of the decoded data in hex - this is just 63. That is, the 63 bytes following the initial two bytes are the meaningful data, with the remaining data being meaningless (the remaining bytes are zero padding).

Decoding the meaningful 63 bytes with UTF-8 gives:

'stamp:{"p":"src-20","op":"transfer","tick":"BMWK","amt":"1000"}'

Note that in the above there are no spaces - "in order to minimize the transaction size spaces are not used in the serialized JSON string which is constructed by the SRC-20 reference wallet". Prettier formats to the following.

stamp: {
	"p":"src-20",
	"op":"transfer",
	"tick":"BMWK",
	"amt":"1000"
}

So we've taken the two P2MS transaction outputs and transformed it to the above data. But we've still got some other aspects of the transaction, such as the two other non-P2MS transaction outputs and the output values, that we should briefly consider.

Non-P2MS transaction outputs and output values

The first transaction output, vout[0], with an address bc1qmgl3u9m7... is the transfer destination. Transfer because this is what the op was in this example; in other cases it might be the "minter" or "deployer" etc. The main point is that vout[0] is always some real address.

The 4th transaction output, vout[3], with an address bc1qdmsmn42q..., is the change address. In this example, it's actually just the same address that was the single transaction input to this transaction - change is going back to original spending address.

The transaction details in Figure 4 show that the first three outputs have a value of 790 sats each. I don't think this value has any significance other than it safely exceeds all dust limits - the highest being 546 sats for P2PKH for the default configuration of 3 sat/vByte. That is, these values ensure that each output and thus the overall transaction is valid, yet is low enough to have low monetary value.

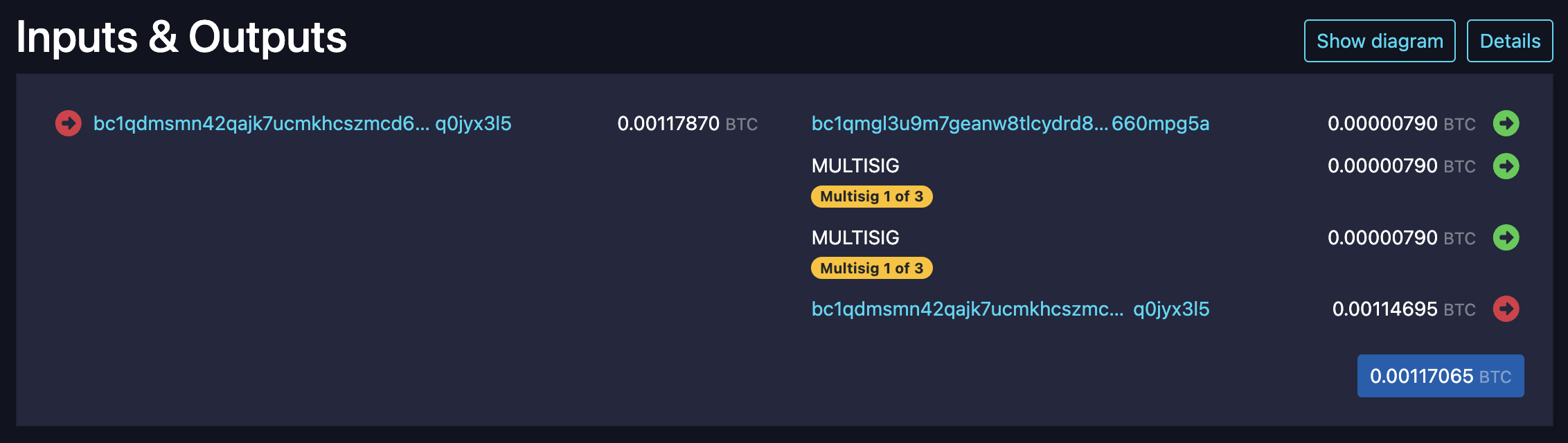

Figure: the transaction details. — **Figure 4:** the transaction details.

Unspendable P2MS outputs

In the above we established that the P2MS transaction outputs were actually purely for data carrying (or were Key Burn) and did not involve real public keys. As such, these P2MS outputs are effectively unspendable outputs, and, given the current design of Bitcoin, they'll remain in the UTXO set of every Bitcoin node. Each time there's a transaction that embeds data in P2MS outputs in the manner described above, there will be at least one, but possibly more, new unspendable P2MS UTXOs added to the UTXO set.

Note that this is, perhaps obviously, intentional. As is noted in the Bitcoin Stamps documentation:

"By doing so, the data is preserved in such a manner that is impossible to prune from a full Bitcoin Node, preserving the data immutably forever."

I think many would consider this wasteful - every time there is some form of individual activity on Bitcoin Stamps, such as the transfer operation from the above example, there's a one-to-one mapping to activity on Bitcoin, tracked forever, by all Bitcoin nodes! It's probably worth examining Bitcoin Stamps in a bit more detail to better understand the what and why.

Bitcoin Stamps

Bitcoin Stamps were developed in response to most NFTs being "merely image pointers to centralized hosting or stored on-chain in prunable witness data". They were a means to achieve permanence in "storing art on the blockchain" and indeed STAMP is an acronym for Secure, Tradeable Art Maintained Securely. The original spec also stated that Bitcoin Stamps encode:

"an image's binary content to a base64 string, placing this string as a suffix to STAMP: in a transaction's description key, and then broadcasting it using the Counterparty protocol onto the Bitcoin ledger. The length of the string means that Counterparty defaults to bare multisig, thereby chunking the data into outputs rather than using the limited (and prunable) OP_RETURN. By doing so, the data is preserved in such a manner that is impossible to prune from a full Bitcoin Node, preserving the data immutably forever."

The above examination of the eb96a65e... transaction is but just one example of Bitcoin Stamps embedding arbitrary data in P2MS outputs. In fact, Bitcoin Stamps has used a variety of techniques since the first transactions, 17686488... and eb3da814..., were included in Block 779,652.

As the above text alluded to, Bitcoin Stamps started out leveraging Counterparty (which has been around since 2014 and is covered in the Counterparty section). Specifically, Bitcoin Stamps ("Classic Stamps") were initially a numerical asset on Counterparty, with data encoded via either P2MS or P2WSH. P2MS Classic Stamps were encoded in the almost the same manner as the example explored above:

ARC4 obfuscation/deobfuscation keyed with the TXID of the first transaction input
Key Burn alongside data keys, no real pubkey present

However, the deobfuscated data must first contain the CNTRPRTY prefix, followed by some Counterparty message fields, before a STAMP: prefix variant and Bitcoin Stamps specific data is found. That is, Classic Bitcoin Stamps used Counterparty transactions as a transport mechanism to embed data in Bitcoin transactions. See Bitcoin Stamps - Classic Stamp image (Counterparty transport) example for a breakdown of such a transaction.

Bitcoin Stamps sub-protocols

Since then, Bitcoin Stamps has become or leveraged a suite of sub-protocols or formats, including SRC-20, SRC-101, SRC-721, SRC-721r, OLGA, with each purportedly serving a different purpose. Note that not all of these forms use P2MS, for example the OLGA Stamp uses P2WSH outputs. As the interest here is P2MS, we'll only focus on the aspect of Bitcoin Stamps that leverage P2MS: Classic Stamps, SRC-20, SRC-101, SRC-721.

The initial example of Bitcoin Stamps using P2MS above (Data carrying in P2MS - A Bitcoin Stamps example) is an example of SRC-20. SRC-20 was developed in response to the BRC-20 craze of early 2023, with SRC-20 offering stronger permanence guarantees due to use of non-witness transaction data. Aside: if you're interested in knowing more about BRC-20 and the history of Ordinals and Inscriptions be sure to check out Binance Research's "BRC-20 Tokens: A Primer" (May 2023) piece. Most Bitcoin Stamps related Bitcoin transactions involve SRC-20.

SRC-101 is a domain name system native to Bitcoin Stamps, similar to something like the Ethereum Name Service (ENS). Such systems are, for example, used to replace standard Bitcoin addresses like bc1q34eaj4rz9yxupzxwza2epvt3qv2nvcc0ujqqpl with simple, human-readable names like alice.btc. The permanence of P2MS, and the guarantee of unspendability via the use of no real pubkeys, were purportedly the rationale for developing SRC-101.

All this is to say that, even within a single ecosystem (Bitcoin Stamps), there are a number of permutations and variants of how data is encoding for data carrying purpose that we need to consider for classification and analysis purposes.

Bitcoin Stamps - Classic Stamp image (Counterparty transport)

EXAMPLE: Bitcoin Stamps - Classic Stamp image (Counterparty transport)

54fdeda9... is a transaction from block height 809,193 with 79 outputs, 77 of which are P2MS outputs. A review of the P2MS outputs shows that all have the 022222222222222222222222222222222222222222222222222222222222222222 Key Burn pattern and the TXID of vin[0] is :

3b2b5e1de60ba341b8ba85e35b09800edb118dc7bee246d54b11420f01aabac5

Armed with this as the deobfuscation key, we can attempt to decode the data embedded in the 77 P2MS outputs. Let's examine the first three P2MS outputs to illustrate the process.

1st P2MS output

Pubkeys:

02e6e725b168f3eeafa527053d43d06c9569a393c34d0e5c2dad2236b785eaed70
02acb6c9432134cad7242dbbd531c44e5ec5918e31d65adab1b2ffb2d3588c7d36

Stripped and concatenated:

e6e725b168f3eeafa527053d43d06c9569a393c34d0e5c2dad2236b785eaed +
acb6c9432134cad7242dbbd531c44e5ec5918e31d65adab1b2ffb2d3588c7d

Deobfuscated with TXID of vin[0]:

3d434e54525052545914575ed3597b0aa71d00000000000000230001005354 +
414d503a52306c474f446c686f41436741504d5041487a4741502f2f2f7777

ASCII interpretation (some characters replaced with .):

.CNTRPRTY.......STAMP:R0lGODlhoACgAPMPAHzGAP///ww

2nd P2MS output

Pubkeys:

03e6e725b168f3eeafa5621322e3c853da83f6d2802a4f136cec6c79f0d0e1f8c4
02a690d838397ce3d1252bbffc0eae7961e2b5ba20c759cfb7a384f6cb10ba4bb6

Stripped and concatenated:

e6e725b168f3eeafa5621322e3c853da83f6d2802a4f136cec6c79f0d0e1f8 +
a690d838397ce3d1252bbffc0eae7961e2b5ba20c759cfb7a384f6cb10ba4b

Deobfuscated with TXID of vin[0]:

3d434e545250525459514141734144454d48414367414f41416d4f46555841 +
4b6b41414a7845414e426841502b745866747941504b6f41502b6b37674141

ASCII interpretation:

=CNTRPRTYQAAsADEMHACgAOAAmOFUXAKkAAJxEANBhAP+tXftyAPKoAP+k7gAA

3rd P2MS output

Pubkeys:

02e6e725b168f3eeafa572112bbfca27aa88e8d58d095f0a6feb4c5f82f2f8ce20
03a8bad838326c8dc13a2f8dfc1fd54c7accea8834ae65c4b19fdbfca4079750c7

Stripped and concatenated:

e6e725b168f3eeafa572112bbfca27aa88e8d58d095f0a6feb4c5f82f2f8ce +
a8bad838326c8dc13a2f8dfc1fd54c7accea8834ae65c4b19fdbfca4079750

Deobfuscated with TXID of vin[0]:

3d434e5452505254594143482f4330354656464e44515642464d6934774177 +
4541414141682b5151465a4141504143482b4b55397764476c746158706c5a

ASCII interpretation:

=CNTRPRTYACH/C05FVFNDQVBFMi4wAwEAAAAh+QQFZAAPACH+KU9wdGltaXplZ

Whenever we see 434e545250525459 in deobfuscated output, we have found the CNTRPRTY identifier. Focusing on the first P2MS output, because we have the CNTRPRTY prefix, we have to interpret the following bytes according to the Counterparty protocol. Now, depending on whether the transaction represents a "legacy" Counterparty transaction or a "modern" Counterparty transaction, changes the interpretation of data. Turns out that this is a "modern" form where the message type is a single byte rather than the 4 bytes for "legacy" Counterparty transactions. Here's a breakdown of the first P2MS output:

Byte Position	Hex (or ASCII)	Interpretation
0	`3d`	Length prefix: 61
1-8	`434e545250525459`	`CNTRPRTY` prefix
9	`14`	Message type 20 (Issuance)
10-17	`575ed3597b0aa71d`	Asset ID: 6295701710380377885
18-25	`0000000000000023`	Asset issue amount: 35
26	`00`	Divisible: False
27	`01`	Lock: True
28	`00`	Reset: False
29-61	`5354414d503a5230...`	Description: `STAMP:R0lGODlhoACgAPMPAHzGAP///ww`

Also note that whenever we see 5354414d503a or 5354414d50533a in the decoded output we have found STAMP: or STAMPS:, respectively (with lowercase variants 7374616d703a for stamp: and 7374616d70733a for stamps:). It's the description field where further decoding or interpretation is clearly necessary; we see the STAMP: prefix following by a bunch of random characters. These random characters are actually base64 encoded data of an image:

"encoding an image's binary content to a base64 string, placing this string as a suffix to STAMP: in a transaction's description key, and then broadcasting it using the Counterparty protocol onto the Bitcoin ledger... STAMP:<base64 data>"

Typically, there would be some "magic bytes" or MIME-type and encoding for image data, but the rationale for the absence of this data in Bitcoin Stamps payloads was given as:

"The fewer the bytes the better." - "Given the limited scope of acceptable file formats, we are confident that decoding them accurately based on the base64 string alone is trivial." - "We are only interested in decoding base64, so if the string does not conform to valid base64 it is rejected. Therefore, specification of the encoding is unnecessary."

Anyway, before we deal with the base64 we need to handle the other P2MS outputs. It can perhaps be inferred from the 2nd and 3rd P2MS outputs above that each P2MS output will have the CNTRPRTY identifier (prefixed by a length prefix). That is, each P2MS output has 9 bytes (1 length prefix, 8 CNTRPRTY) reserved for the Counterparty protocol, so the true data carrying capacity is only: (62 - 9)/62 = 85.4%. This is probably one reason why Bitcoin Stamps opted for a new protocol - improve efficiency by not requiring a length prefix and CNTRPRTY identifier in each P2MS output.

Once we've stripped all length prefixes and CNTRPRTY identifiers from all the deobfuscated P2MS outputs and concatenated them, we end up with 4,004 bytes of base64 data which decodes to a 3,003-byte GIF. The size discrepancy is base64 encoding overhead: every 4 base64 characters is 3 bytes of binary data, so 4,004 / 4 = 1,001 groups x 3 = 3,003 bytes. The recovered image is shown in Figure 5.

This example has shown how Bitcoin Stamps created 77 P2MS unspendable outputs in transaction 54fdeda9... for the purpose of storing a single 3kB GIF.

Figure: the GIF embedded in the 77 P2MS outputs of transaction `54fdeda9...`. — **Figure 5:** the GIF embedded in the 77 P2MS outputs of transaction `54fdeda9...`.

Counterparty

We began our exploration of data carrying in P2MS with Bitcoin Stamps because this protocol is both the most prolific user of P2MS for data carrying purposes, and is largely the only protocol still in active use today. It started, however, with Classic Stamps leveraging Counterparty, which was the first protocol to start using P2MS for data carrying purposes in a significant way back in 2014.

We won't dwell much on the history of Counterparty here, it's incredibly well documented elsewhere, including:

It is, however perhaps worth noting that Counterparty, via the adoption of P2MS for data carrying, was a key factor in the decision make OP_RETURN transactions standard in Bitcoin Core 0.9.0 (March 2014):

"On OP_RETURN: There was been (sic) some confusion and misunderstanding in the community, regarding the OP_RETURN feature in 0.9 and data in the blockchain. This change is not an endorsement of storing data in the blockchain. The OP_RETURN change creates a provably-prunable output, to avoid data storage schemes – some of which were already deployed – that were storing arbitrary data such as images as forever-unspendable TX outputs, bloating bitcoin’s UTXO database."

"Storing arbitrary data in the blockchain is still a bad idea; it is less costly and far more efficient to store non-currency data elsewhere."

Counterparty was created to enable features like user-created tokens (assets), decentralised exchanges ("dexes"), and other financial primitives without requiring changes to the Bitcoin protocol. By encoding its protocol messages in Bitcoin transactions, Counterparty leveraged Bitcoin's security and immutability to create a financial platform on top of Bitcoin. The protocol initially used P2MS outputs for data embedding before transitioning to OP_RETURN outputs once they became standard, though P2MS continued to be used for larger transactions that exceeded OP_RETURN's (standardness) size limits. Counterparty's approach was influential in demonstrating both the potential and controversy of using Bitcoin for purposes beyond simple value transfer.

Counterparty is also of some importance in being the single largest example of proof-of-burn in Bitcoin. Proof-of-burn was seen as a way to bootstrap the Counterparty ecosystem without requiring an ICO or pre-mining, which were common practices at the time. Proof-of-burn involves sending Bitcoin to an unspendable address, effectively "burning" the Bitcoin, and, in the Counterparty case, receiving Counterparty (XCP) tokens in return. During January 2014, Counterparty distributed XCP tokens to those who sent Bitcoin to the provably unspendable 1CounterpartyXXXXXXXXXXXXXXXUWLpVr address. To date, 2,130.99165372 Bitcoin has been permanently destroyed in being sent to this address.

Embedding Counterparty transactions in Bitcoin

In general, to know if a transaction involving P2MS outputs is a Counterparty transaction, we actually have to treat the transaction data in a number of different ways. The majority of Counterparty data is, like Bitcoin Stamps, obfuscated by ARC4, keyed with the TXID of the first input (vin[0]). However, unlike Bitcoin Stamps, there is no Key Burn key that provides a simple indication that a transaction is a Counterparty transaction; keys in Counterparty are either valid public keys or are data-carrying.

There is a minority of Counterparty transactions that does not, however, use ARC4 obfuscation, and all that is required is simple ASCII decoding. An example of such is outlined in Counterparty - no ARC4 obfuscation.

Regardless of whether there is ARC4 obfuscation or not, the definitive indication that a Bitcoin transaction is a Counterparty transaction is if the string CNTRPRTY is present in the data. For the majority of Counterparty transactions involving ARC4, the deobfuscation process is necessary before CNTRPRTY can be detected, for those lacking ARC4 obfuscation, it is relatively straightforward to identify the CNTRPRTY prefix via ASCII decoding of P2MS data keys.

In addition to there being a mix of data-encoding techniques, Counterparty also (primarily) uses both 1-of-2 and 1-of-3 P2MS transaction outputs. Depending on which, and when the Counterparty transaction was constructed, the real pubkey is in a different position:

for 1-of-2, the real pubkey is the first of the two keys
for 1-of-3, the real pubkey is either the first (newer) or last (older) of the three keys

Being a real pubkey, and with each multisig requiring one key to spend, most Counterparty UTXOs can be spent, and thus removed from the UTXO set. Contrast this with Bitcoin Stamps, where the keys are either Key Burn or data keys thus no private key exists to spend the UTXO, so they will remain in the UTXO set.

The remaining key(s) in each configuration are the data carrying component. And again, depending on which particular variant of the Counterparty protocol we're dealing with, we may need to strip the first and last bytes from a pubkey like was necessary for Bitcoin Stamps, or no such stripping is required, and entire key encodes data.

The current, official Counterparty protocol specification states the following:

For identification purposes, every Counterparty transaction’s ‘data’ field is prefixed by the string CNTRPRTY, encoded in UTF‐8. This string is long enough that transactions with outputs containing pseudo‐random data cannot be mistaken for valid Counterparty transactions. In testing (i.e. using the TESTCOIN Counterparty network on any blockchain), this string is ‘XX’.

Counterparty data may be stored in three different types of outputs, or in some combinations of those formats. All of the data is obfuscated by ARC4 using the transaction identifier (TXID) of the first unspent transaction output (UTXO) as the obfuscation key.

Multi‐signature data outputs are one‐of‐three outputs where the first public key is that of the sender, so that the value of the output is redeemable, and the second two public keys encode the data, zero‐padded and prefixed with a length byte.

The following examples examine a few Counterparty transactions that use some of the various methods described above to encode a variety of data in P2MS transactions.

Counterparty - no ARC4 obfuscation

EXAMPLE: Counterparty - no ARC4 obfuscation

Let's look at an example of a simple Counterparty transaction from block 290,929, 585f50f1... that has a single 1-of-2 P2MS output. For this transaction, the two keys are:

02dd842167b625c60c10eda494eadd54df7b30f372d717b946b1912f0ce59dddf6
1c434e5452505254590000000000000000000000010000000001312d0000000000

Even from just looking at these keys, it should be pretty obvious that the second is likely not a real pubkey! If we try to decode this 2nd key as ASCII we can immediately observe CNTRPRTY in the output. For completeness, breaking it down (using knowledge of Counterparty message structure) we have:

Byte Position	Hex	Interpretation
0	`1c`	Padding/length indicator (28)
1-8	`434e545250525459`	`CNTRPRTY` prefix
9-12	`00000000`	Message Type 0 (Basic Send)
13-20	`0000000000000001`	Asset ID 1 (XCP)
21-28	`0000000001312d00`	Quantity: 20,000,000 = 0.2 XCP
29-32	`00000000`	4 null bytes

Counterparty - ARC4 obfuscation

EXAMPLE: Counterparty - ARC4 obfuscation

Here's an example of another relatively simple Counterparty transaction, this time from block 368,602, 541e640f.... This transaction has two 1-of-3 P2MS outputs. On the question of which key position represents the real pubkey, upon examination it's clear that the last of the three keys in each P2MS output is the real key as we have the same key present in both outputs: 0241e401...ee1f). This is sender's public key, as can be confirmed by examining the ScriptSig of the transaction input in Figure 6 with the key highlighted in yellow.

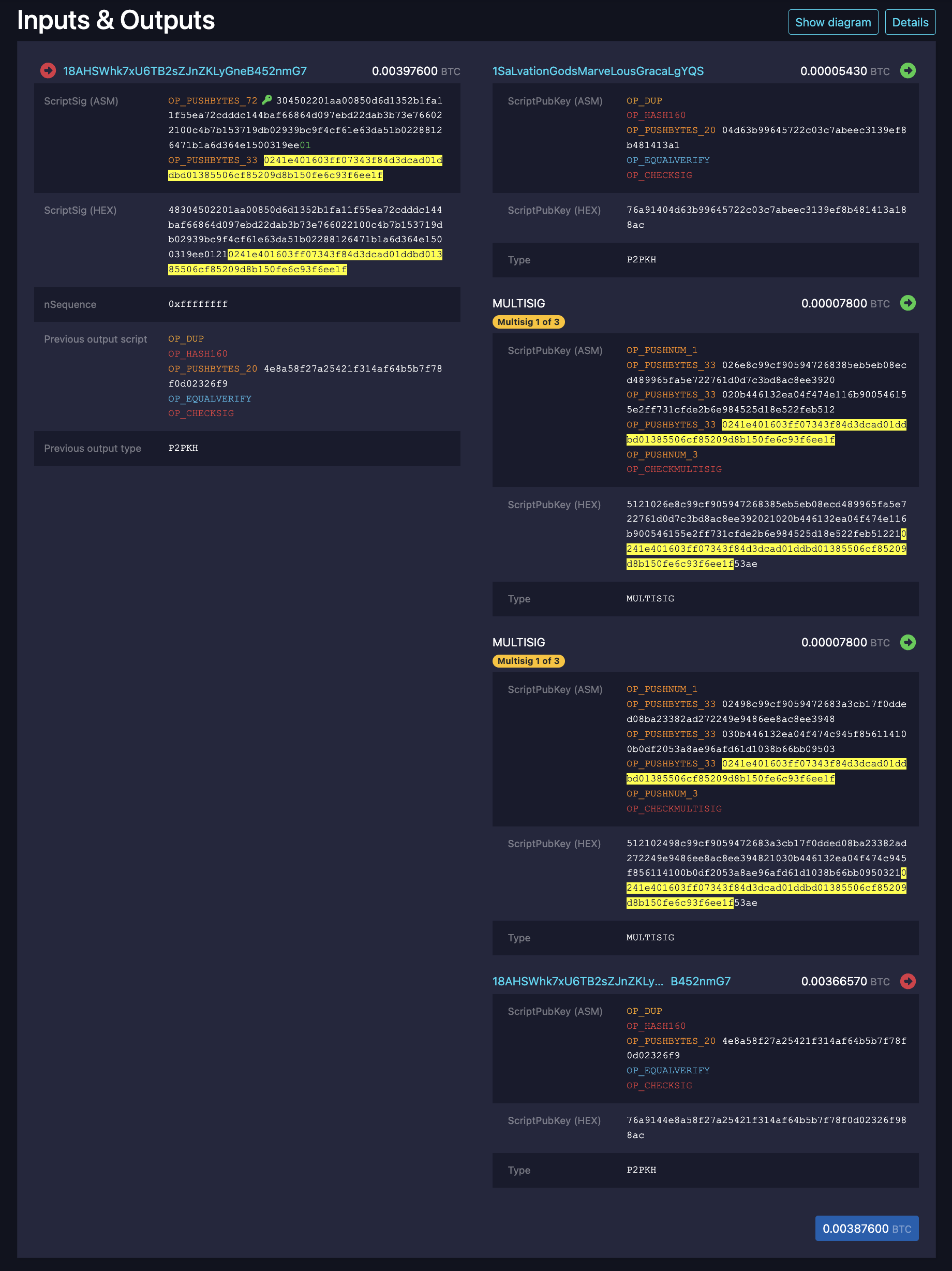

Figure: Counterparty with ARC4 obfuscation transaction details (`541e640f...`). — **Figure 6:** Counterparty with ARC4 obfuscation transaction details (`541e640f...`).

If we follow a process similar to the original Bitcoin Stamps example, we end up with:

a deobfuscation key of de3dec665a89228593ffa3c0236dd098a6f9ef6ac698db016f8a3303ce728649 (TXID of first input)
a 124-byte string from a concatenation of the stripped keys of 026e8c99cf905947... + 020b446132ea04f4... + 02498c99cf905947... + 030b446132ea04f4...

After ARC4 deobfuscation, each P2MS output contains its own length-prefixed segment with a CNTRPRTY header:

First P2MS output (62 bytes):

Byte Position	Hex	Interpretation
0	`3d`	Length prefix: 61 bytes follow
1-8	`434e545250525459`	`CNTRPRTY` prefix
9-12	`00000014`	Message Type: 20 (Issuance)
13-20	`0000036c089131f1`	Asset ID: 3762535084529
21-28	`0000000000000000`	Quantity (high 8 bytes): 0
29-36	`0000000000000000`	Quantity (low 8 bytes): 0
37	`00`	Divisible: False
38	`00`	Lock/Reset flags
39-61	`285341564520555220534f554c2046524f4d2053494e20`	Description (part 1): "(SAVE UR SOUL FROM SIN " (23 bytes)

Second P2MS output (62 bytes):

Byte Position	Hex	Interpretation
62	`1a`	Length prefix: 26 bytes follow
63-70	`434e545250525459`	`CNTRPRTY` prefix (repeated)
71-88	`262049545320434f4e53455155454e434553`	Description (part 2): "& ITS CONSEQUENCES" (18 bytes)
89-123	`00...`	Null padding (35 bytes)

The complete Counterparty message is reconstructed by reading each length-prefixed segment, verifying the CNTRPRTY header, and concatenating the following data. This structure allows messages to span multiple P2MS outputs while maintaining independent validation of each segment. Associated with this transaction is a vanity address, 1SaLvationGodsMarveLousGracaLgYQS, which is the first transaction output.

And, for sake of completeness, here's some links to this transaction and "asset" (SALVATION).

Omni (formerly Mastercoin)

The Omni Protocol, originally known as Mastercoin, was the pioneering protocol for building a layer on top of Bitcoin - it predated Counterparty! Created by J.R. Willett and detailed in his January 2012 whitepaper "The Second Bitcoin Whitepaper", Mastercoin sought to extend Bitcoin's functionality to enable more complex financial instruments and smart property without requiring any modifications to Bitcoin itself.

The project went live in August 2013 via the Mastercoin Crowdsale with MSC tokens generated during the month of August 2013 when individuals sent bitcoin to the Mastercoin (vanity) "Exodus Address": 1EXoDusj.... To date, 6,674.36781069 BTC have been sent to this address.

Mastercoin had a somewhat rocky history, check out the June 2014 Forbes article The First 'Bitcoin 2.0' Crowd Sale Was A Wildly Successful $7 Million Disaster for some early context, but despite this, it has had a lasting impact on Bitcoin. Most prominently Tether (USDT) launched on the Mastercoin protocol as "Realcoin" and, for years, billions of dollars worth of USDT transactions were embedded in Bitcoin's blockchain via Mastercoin/Omni transactions. Mastercoin was re-branded to Omni in 2015, likely to cast off some of the negative connotations associated with the Mastercoin project.

Embedding Omni transactions in Bitcoin

The Omni protocol specifies three different ways to embed data in the Bitcoin blockchain:

Class A transactions - use fake addresses
Class B transactions - use multi-signature transactions
Class C transactions - use OP_RETURN such that Omni Protocol data is completely prunable. This class was introduced with re-introduction of OP_RETURN in Bitcoin Core in version 0.9.0 (March 2014).

The focus here is then on Class B Omni transactions, which are still used to this day for large transactions that do not fit within the (previous) default OP_RETURN policy limit specified by a majority of the network (e.g., 80 bytes).

According to the Omni specification, the first pubkey in each Omni transaction P2MS transaction output "should be a valid public key address designated by the sender which may be used to reclaim the bitcoin assigned to the output". The remaining key (in a 1-of-2) or keys (in a 1-of-3) must be compressed public keys, where each 33-byte compressed public key encapsulates an Omni Protocol packet.

After stripping the first and last bytes, the first byte of each 31-byte "packet", is a sequence number which is used to order the packets. This can range between 1 and 255, which implies:

There's 30 usable bytes per-packet (per data key) for Omni Protocol transaction data
There's 255 x 30 = 7,650 bytes maximum data storage capacity for each Class B Omni transaction

To encode data in each packet, the sender's address is used, where the sender's address is the address that contributed the most input value. The sender's address must be a P2PKH address, and:

"Obfuscation is performed by SHA256 hashing the sender's address S times (where S is the sequence number) and taking the first 31 bytes of the resulting hash and XORing with the 31-byte Omni packet. Multiple SHA256 passes are performed against an uppercase hex representation of the previous hash."

Omni - Single Packet

EXAMPLE: Omni - Single Packet

0000297b... is an Omni transaction with a single, 1-of-2 P2MS output in block 323,250. It has an uncompressed (65-byte) key as the first pubkey, and a compressed (33-byte) key as the second pubkey. The first pubkey is the valid pubkey, so this (currently unspent) P2MS output of 5,678 sats could presumably be spent at some point. The second pubkey encapsulates the single Omni Protocol packet for this Omni transaction.

There are 7 transaction inputs, all are contributed by the 1MaStErt4XsYHPwfrN9TpgdURLhHTdMenH address, so this is the sender's address.

To decode, we take the sender's address, apply SHA256 once, and obtain the first 31 bytes of the hash result:

2c7f68ac457d834fb57a112f3571d63bb6365d4c0523f9f74b298096160a02

Taking the second, data carrying pubkey and stripping the first and last bytes yields:

2d7f68ac457d834fb67a112f3571da0eb6365d4c0523f9f74b298096160a02

XORing these two 31-byte strings results in:

01000000000000000300000000000c35000000000000000000000000000000

This breaks down to:

Byte Position	Hex	Interpretation
0	`01`	Packet sequence number: 1
1-2	`0000`	Transaction version: 0
3-4	`0000`	Transaction type: 0 (simple send)
5-8	`00000003`	Currency ID: 3 (MaidSafeCoin)
9-16	`00000000000c3500`	Amount: 800,000
17-30	`00000000000000000000000000000000`	Padding (unused)

This is the official list for the mapping between Currency ID value and name.

Omni - Multi Packet

EXAMPLE: Omni - Multi Packet

A very recent (25 June 2025!) example of an Omni transaction involving multiple P2MS transaction outputs, and thus multiple Omni packets, is 15309186....

The main difference from the single packet example above is that for each subsequent pubkey, we need to apply SHA256 once more to the sender's address. So with a sender's address of 1D6oYjFVRAETW1Us9oS36YC71gfRw1omZB, and there being 6 P2MS transaction outputs (the first 5 are 1-of-3, the last is a 1-of-2), we have 11 full 32-byte SHA256 results, with the index indicating the number of SHA256 rounds (remembering to convert to uppercase hex representation before each round):

x573a09227032f2dde9d2ecf3ffd930d69276754c3bc4343b01c14e0515741fa0
bc9197079fb1e344370ab8ee984291f1a3721b37901484dfb2079a158adc5e30
5439114b4688ba1e4e88ecb1454e7b147c886979b2e817082188b083d21fd871
cba80dd14016ec8be4cb466affa23d09f2418a361dbad0b3cebffcca473a6e90
834bdf87e79fd15dd54190a478e4f6e9a82a65e5e1220368405099064ad75dfd
aa5cfb1d38ad07a94a6986d4101082b673465f528c50efd8710bcf5ace2114dd
aafcd59c4c16f69343db9aac1091e0aa0b672efc66272b74870e84207986c9f5
9fb030e442bdfd7ee7cd0c2fbbd801381cb49f04ba11bc1c3ab68a435f8b5806
43fdd5998b69475c6416789a441cb8b897417a8b55cc0e684fe43e295f682bd7
a1c0f8d8c283565b31db64d205b403fcd96fbb62a6abe25c60a7bb57e751028e
b2573c41dd7e13da76fa530f1f48a3a1df4217b362c59a8bcead0135905ac09b

Dropping the last byte of each hash, and then XORing with the first-and-last-byte stripped compressed keys yields the following. We can see that the data has been successfully deobfuscated as the leading byte, the sequence number, ranges from 1 (01) through 11 (0b).

010000003202000200000000456475636174696f6e004f7468657200416e75
02436f696e0068747470733a2f2f75756367612e636f6d2f616e75636f696e
037768697465706170657200416e75436f696e206973206120736163726564
042063757272656e637920666f7220706c616e657461727920726562697274
05682c206261636b656420627920746865204b756b756c6b616e20436f6465
06782e204974206272696467657320736f756c20736f7665726569676e7479
072c20626c6f636b636861696e20696e746567726974792c20616e6420636f
08736d69632072656d656d6272616e636520666f7220616c6c206265696e67
09732077616c6b696e67207468652070617468206f66207370697269747561
0a6c206c6967687420616e642067616c616374696320416e756e6e616b6920
0b656e6c69676874656e6d656e742e00000000035a4e900000000000000000

Removing sequence numbers, but still accounting for original byte position in the first packet, this breaks down to:

Byte Position	Hex	Interpretation
1-2	`0000`	Transaction version: 0
3-4	`0032`	Transaction type: 50 (create fixed property)
5	`02`	Ecosystem: 2 (Test Omni)
6-7	`0002`	Property type: 2 (new divisible currency)
8-11	`00000000`	Previous property ID: 0 (new smart property)
12-20	`456475636174696f6e`	Property Category: "Education"
21	`00`	Null terminator for previous string
22-26	`4f74686572`	Property Subcategory: "Other"
27	`00`	Null terminator for previous string

Continuing with the last 3 bytes (28-30, 416e75) concatenated to the second packet (sans sequence number):

Byte Position	Hex	Interpretation
28-30, 1-4	`416e75`+`436f696e`	Property Name: "AnuCoin"
5	`00`	Null terminator for previous string

Next up is the Property URL, which is the remainder of the second packet (6-30) and into the third packet (1-10). We reach the end when we hit the null terminator 00 (byte 11).

Byte Position	Hex	Interpretation
6-30, 1-10	`68747470...61706572`	Property URL: "https://uucga.com/anucoinwhitepaper"

This is followed by Property Data, which extends from packet 3 through to packet 11, ending at the null terminator (byte 15):

Byte Position	Hex	Interpretation
Many	`416e7543...656e742e`	Property Data: "AnuCoin is a sacred currency for planetary rebirth, backed by the Kukulkan Codex. It bridges soul sovereignty, blockchain integrity, and cosmic remembrance for all beings walking the path of spiritual light and galactic Anunnaki enlightenment."
16-23	`000000035a4e9000`	Number of coins: 14,400,000,000

As per the Omni spec for the number of coins "for divisible coins or tokens, the value in this field is to be divided by 100,000,000", so there are actually only 144 units of this "AnuCoin". And the sender was perhaps very impatient for the world to hear about "AnuCoin", significantly over-paying to get the transaction confirmed quickly:

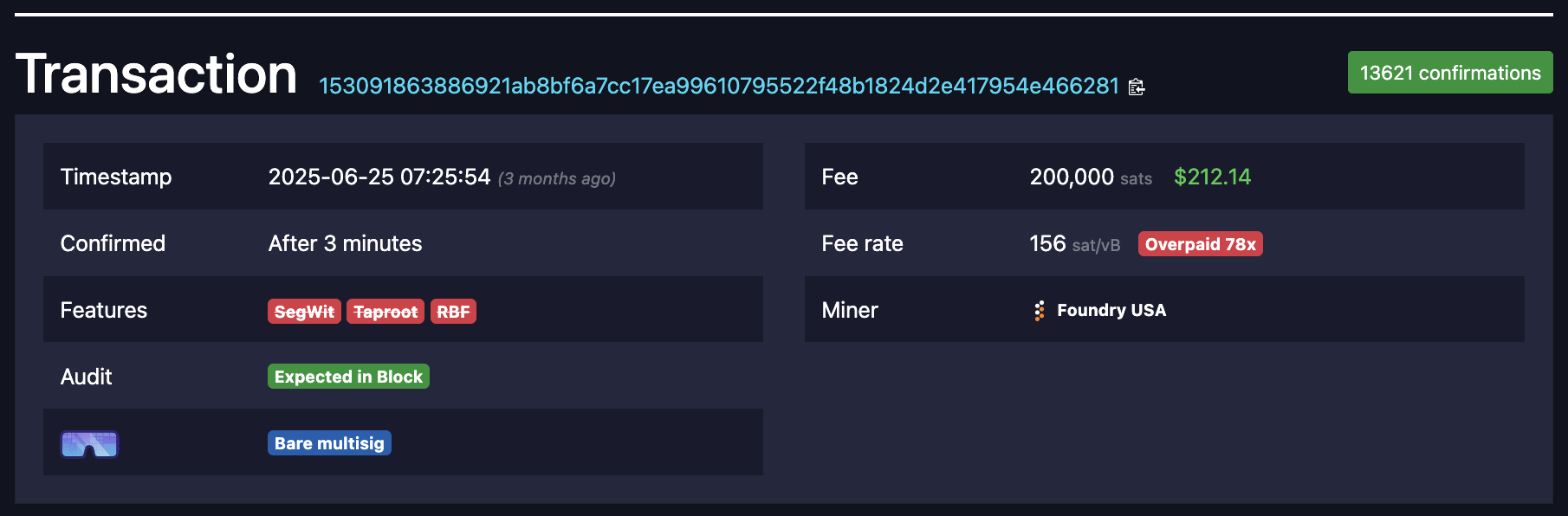

Figure: 200,000 sat transaction fee for AnuCoin. — **Figure 7:** 200,000 sat transaction fee for AnuCoin.

Again, by no means being any form of endorsement, here are full details relating to this property/asset on Omni.

Other variants or protocols

As documented in Part 2, Bitcoin Stamps, Counterparty and Omni are the dominant protocols that utilise P2MS outputs for data carrying purposes, combined accounting for over 98% of P2MS outputs in the UTXO set. Yet there are other approaches and minor protocols that also use P2MS outputs to carry data:

Minor standalone protocols: Protocols with their own identifiers embedded in P2MS data: PPk (PPkPub), Chancecoin (CHANCECO), TB0001, TEST01, METROXMN
Hybrid OP_RETURN signalling: Protocols that use OP_RETURN for identification alongside P2MS for data storage
Generic data storage: Direct data embedding without protocol layers

These other identifier patterns or protocols can often be simply identified by ASCII interpretation of the P2MS key data, or data of other outputs (OP_RETURN), though sometimes they have binary formats for messages.

PPk (PPkPub)

PPk (PPkPub) was a blockchain infrastructure protocol developed by researchers at Beijing University of Posts and Telecommunications between 2016-2019, designed to create a decentralized naming and identity system built on Bitcoin (see English documentation). The protocol appears to have been abandoned since 2019.

The protocol used so-called ODIN (Open Data Index Name) identifiers to reference resources stored in Bitcoin transactions. The naming structure follows the format ppk:[BTC_BLOCK_HEIGHT].[BTC_TRANS_INDEX]/[DSS]. For example, ppk:426896.1290/message.txt points to TXID a7fcc739... at position 1290 in block 426,896, with message.txt as the Data Source Suffix (DSS), which is basically an (optional) resource path.

So given ppk:426896.1290/message.txt, anyone can locate block 426,896, find transaction at position 1290, detect the PPk marker, extract the payload, and decode the message. This design leverages Bitcoin "blockchain coordinates" (block height, transaction index within block) as a naming system: globally unique (no collision risk), deterministic, independently verifiable (anyone can reconstruct it), decentralised (no central registry), and immutable (unchanging once mined).

ODINs are retroactive identifiers constructed from these "blockchain coordinates" after mining (not embedded beforehand). When created, PPk transactions contain only the JSON data payload, in the form of title registration (RT), registration information, or message text, split across P2MS and OP_RETURN outputs, plus a distinctive marker pubkey (0320a0de...3e12) at position 2 in the P2MS output. No block height, transaction index, or ODIN appears in the transaction itself.

Decoders construct the ODIN deterministically by detecting the marker pubkey, extracting the payload from P2MS and OP_RETURN outputs, inferring the resource path from payload type (RT becomes profile.json, registration data becomes, for example, reg_315.txt, messages become message.txt), looking up "blockchain coordinates", and constructing ppk:[height].[index]/[path]. Data is unobfuscated and directly readable and both 1-of-2 and 1-of-3 multisig configurations are used.

Chancecoin

Chancecoin was a gambling protocol built on Bitcoin, only active for a short period in 2014, that used P2MS outputs for data carrying purposes in some circumstances. Like Counterparty, users were required to send bitcoin to a specific address, between certain dates, to obtain "Chancecoin tokens". In this case the address was 1ChancecoinXXXXXXXXXXXXXXXXXZELUFD. To date, 480.19571581 BTC have been sent to it.

Key characteristics:

CHANCECO identifier present in ASCII interpretation, data is not obfuscated
Uses 1-of-2 P2MS outputs, data is in the 2nd pubkey, the 1st is a valid pubkey
Each Chancecoin P2MS output has 32 bytes data carrying capability
Large Chancecoin messages are split across multiple P2MS outputs
Message format: [CHANCECO:8][MessageID:4][Data:variable]

ASCII identifier patterns

Other identifier patterns that have been observed in P2MS outputs in the UTXO set by simple ASCII decoding include TB0001, TEST01, METROXMN. There doesn't appear to be much information online about these identifiers, with the exception of METROXMN which is associated with Metronotes XMN, which unequivocally appears to be a scam.

Although the identifiers are not obfuscated, the data that follows is likely representing some form of protocol or message format like the other data carrying methods. In the companion repository, unlike the other protocols discussed here, no attempt has been made to interpret or decode the data beyond the identifier.

OP_RETURN signalling

Some protocols employ a hybrid approach, using OP_RETURN outputs to signal or identify the protocol, while simultaneously using P2MS outputs to carry the actual data payload. This dual-output pattern provides explicit protocol identification through the OP_RETURN marker, while the larger data carrying capacity of P2MS outputs is used for the message content. Three distinct variants have been identified in the UTXO set using this approach:

"Protocol 47930" (0xbb3a marker) uses a 2-byte OP_RETURN prefix (0xbb3a) alongside 2-of-2 multisig outputs.
"RT Protocol" employs an ASCII RT identifier in its OP_RETURN output, paired with 1-of-2 multisig data storage.
"CLIPPERZ" is a password manager service that used Bitcoin's blockchain for encrypted data backup and notarization, creating OP_RETURN outputs containing CLIPPERZ alongside 2-of-2 multisig outputs. The OP_RETURN serves as an explicit protocol declaration, avoiding ambiguity in classification, while the P2MS outputs function as the primary data carrier.

Generic Data Storage

Data carrying in P2MS outputs need not rely on some standardised protocol and indeed there are many files (documents, images, etc.) and text, encoded, with or without any obfuscation, into P2MS pubkeys.

There are many examples of using P2MS outputs for generic data storage, but perhaps the most famous two are:

The Bitcoin Whitepaper PDF - a single transaction
The Wikileaks Cablegate data - uses multiple transactions

Both of these examples, and many other instances of Bitcoin transaction data being used for generic data storage are very well documented by Ken Shirriff in Hidden surprises in the Bitcoin blockchain and how they are stored: Nelson Mandela, Wikileaks, photos, and Python software and Ciro Santilli in Cool data embedded in the Bitcoin blockchain: Ciro's Bitcoin Inscription Museum. For the purposes of understanding how P2MS outputs have been used for generic data storage, we'll examine how we can extract the Bitcoin Whitepaper PDF.

The Bitcoin whitepaper PDF

The following works through the process of extracting the Bitcoin whitepaper PDF from the transaction 54e48e5f... in block 230,009 (April 2013). Note that this is also documented in various places online, including some elegant one-liners on Bitcoin Stack Exchange

EXAMPLE: Generic Data Storage - The Bitcoin Whitepaper PDF

One of the most famous examples of data embedding in Bitcoin is the Bitcoin whitepaper PDF embedded in transaction 54e48e5f.... This transaction has 948 outputs, 946 of which are 1-of-3 P2MS outputs, with the remaining two outputs being standard P2PKH outputs. All pubkeys involved are also 65-byte uncompressed pubkeys, presumably to maximise data carrying capacity. Unlike the protocol-based approaches we've examined (Bitcoin Stamps, Counterparty, Omni), this is a straightforward generic data storage example with no obfuscation or encryption.

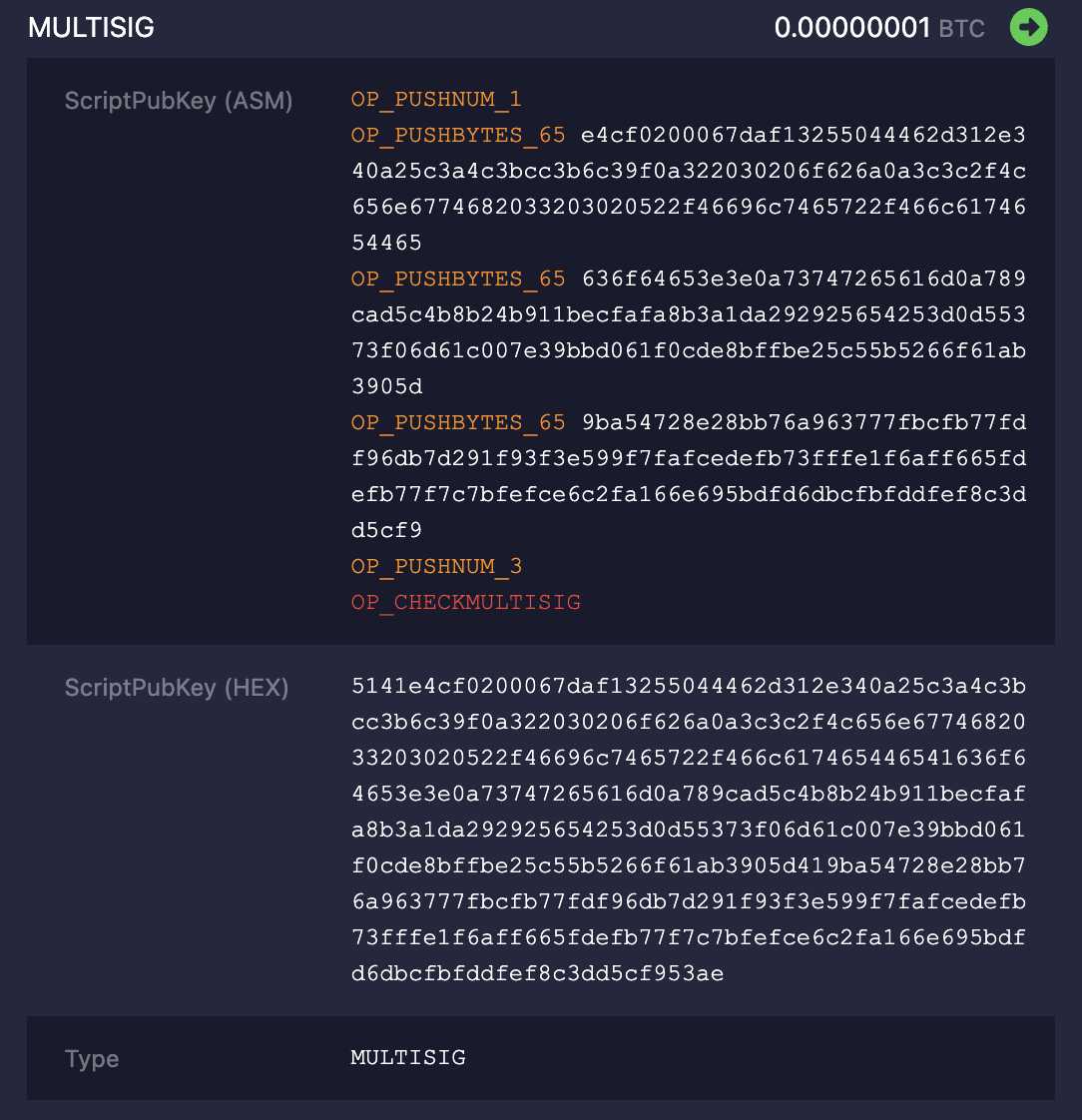

Examining the first output (vout[0]) as in Figure 8 we can see that the 1-of-3 P2MS output uses full 65-byte uncompressed pubkeys. With uncompressed pubkeys, typically starting with an 04 prefix, yet none of these keys starting with 04, we know that none of these keys are valid pubkeys, and thus this P2MS output is unspendable. If we were to examine the remaining 945 P2MS outputs, we would see the same pattern: all 3 keys in each output are uncompressed pubkeys, and none of which are valid pubkeys.

Figure: details of first P2MS output of the Bitcoin whitepaper PDF transaction (`54e48e5f...`). — **Figure 8:** details of first P2MS output of the Bitcoin whitepaper PDF transaction (`54e48e5f...`).

The extraction is simpler than protocol-based approaches:

Step 1: Extract all pubkey data

For each of the 946 P2MS outputs, concatenate all three 65-byte chunks:

Output 0: e4cf0200... + 636f6465... + 9ba54728... = 195 bytes
Output 1: f4eb5fde... + 1f3fe4ab... + 7395c3c8... = 195 bytes
...continue for all 946 outputs
Total concatenated data: 946 × 195 = 184,470 bytes

Step 2: Detect the file type

Scanning the concatenated data reveals the PDF magic bytes %PDF (hex: 25 50 44 46) at a specific offset:

Byte position 0-7:   e4 cf 02 00 06 7d af 13  (8-byte prefix)
Byte position 8-15:  25 50 44 46 2d 31 2e 34  (%PDF-1.4)

Step 3: Localise the PDF content

The PDF data is located at the following byte positions in the raw data:

Byte 8: %PDF-1.4\n - PDF header starts
Bytes 184,294-184,298: %%EOF - End-of-file marker (5 bytes: hex 25 25 45 4f 46)
Byte 184,299: \n - Final newline after EOF (hex 0a)
Bytes 184,300-184,469: Null padding (170 bytes)

Step 4: Trim leading and trailing data, extract PDF

Total bytes to remove: 178 bytes (8 byte prefix + 170 bytes null padding)
Byte 0: %PDF-1.4\n - PDF header (8-byte prefix removed, now at position 0)
Bytes 184,286-184,290: %%EOF - EOF marker (5 bytes)
Byte 184,291: \n - Final newline (hex 0a)
Total size: 184,292 bytes

The final extracted PDF is exactly 184,292 bytes and can be saved as a valid PDF file.

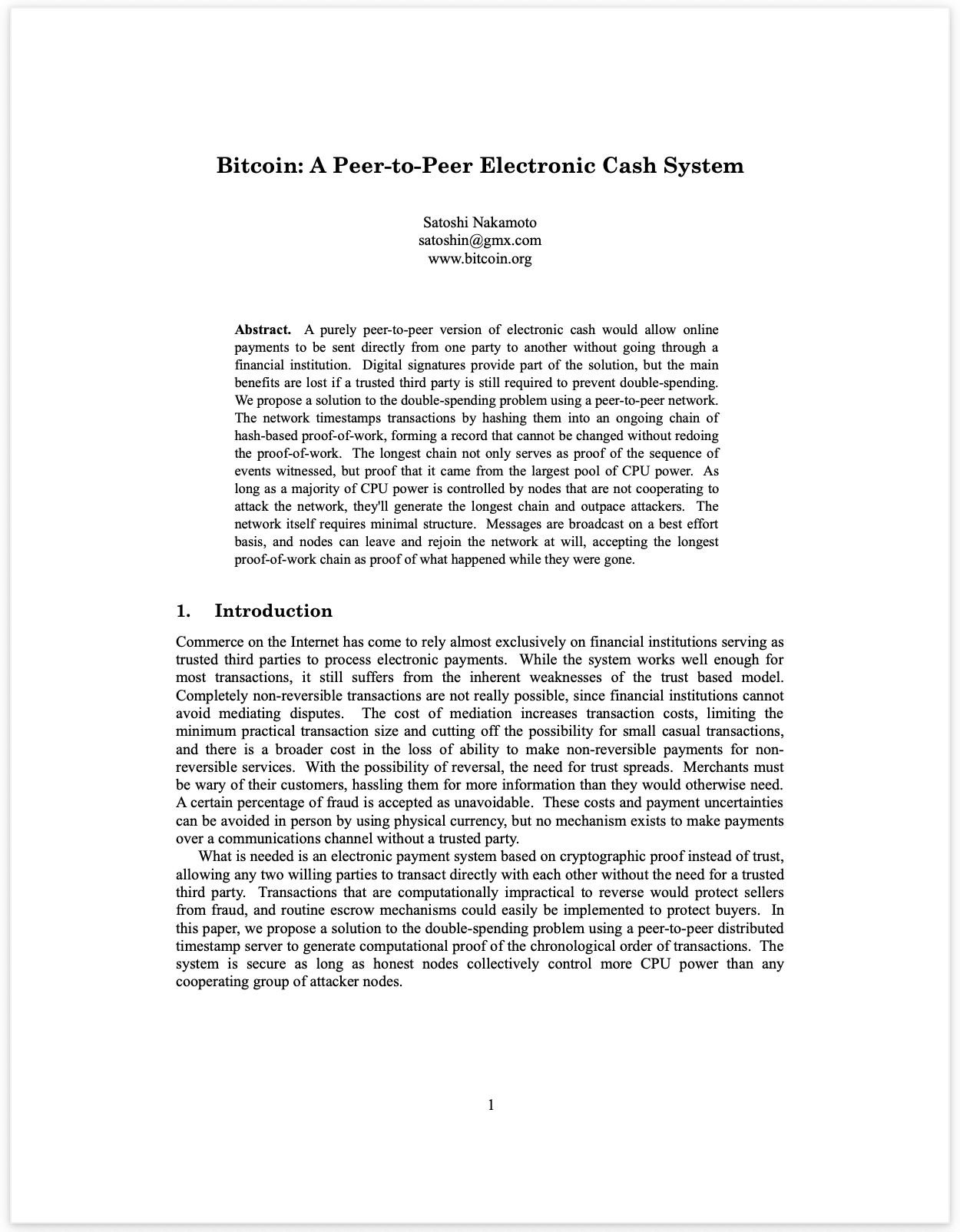

Figure: the first page of the extracted Bitcoin whitepaper PDF. — **Figure 9:** the first page of the extracted Bitcoin whitepaper PDF.

Summarising the main techniques

In the post we've explored the main methods of how data is carried in P2MS transaction outputs, including working through examples that showed how the various protocols or methods operate. The dominant protocols, Bitcoin Stamps, Counterparty, and Omni, account for over 94% of all P2MS UTXOs (as we shall learn in Part 2), with the following summarising the key technical distinctions between them.

Protocol identification: Bitcoin Stamps can often be identified without deobfuscation via Key Burn patterns, while Counterparty requires attempting deobfuscation to find the CNTRPRTY prefix. Omni transactions are identified by the presence of the Exodus address as one of the transaction outputs.

Obfuscation techniques: Bitcoin Stamps and Counterparty both use ARC4 stream cipher obfuscation with the input TXID as the key, whereas Omni uses SHA256 hashing with XOR operations (and generic data storage often uses no obfuscation at all, with the data embedded directly in pubkey).

Spendability vs. permanence: Bitcoin Stamps deliberately creates unspendable outputs in using no real pubkeys, ensuring the data remains in the UTXO set forever. Counterparty and Omni, by contrast, include a valid pubkey that allows each output to be spent, theoretically enabling UTXO set cleanup (though, in practice, many remain unspent years after being created).

Data density & efficiency: All three protocols achieve roughly similar density per pubkey (30-31 usable bytes), though older non-ARC4 obfuscated Counterparty transactions use all 33 bytes of a 33-byte compressed pubkey. The efficiency of the Counterparty protocol is lower than the other two due to per-output headers (losing 9 bytes per output), Omni achieves decent efficiency by using 30 of 31 bytes of each stripped pubkey (losing 1 byte per pubkey), and Bitcoin Stamps achieves the highest efficiency by using all bytes in 2nd and subsequent P2MS outputs for data.

	Bitcoin Stamps	Counterparty	Omni
Obfuscation method	ARC4	ARC4	SHA256+XOR
To deobfuscate	TXID of first TX input (`vin[0].txid`)	TXID of first TX input (`vin[0].txid`)	Sender's address (address contributing most value to input)
Identifier	Key Burn addresses (`0x0222...`, `0x0333...`, etc.)	`CNTRPRTY` prefix (after deobfuscation)	Exodus address (`1EXoDusj...`) as output
P2MS configuration	1-of-3	1-of-2 or 1-of-3 (mostly)	1-of-2 or 1-of-3 (only)
Spendability	Unspendable - Key Burn and data keys only	Spendable - real pubkey present	Spendable - real pubkey present
Data per pubkey	31 bytes (33-byte compressed, strip first/last)	31 or 33 bytes (varies by variant)	30 bytes (31-byte packet minus sequence)
Data segment	Transport method dependent	Per P2MS output	Per pubkey
Carrying efficiency of multi-output	~100%	~85%	~97%
Active period	2023-present	2014-present	2013-present

Table 1: Comparison of the technical details of the major P2MS-using protocols.

Beyond these three major protocols, we also see P2MS transaction outputs leveraged by minor protocols. PPk (PPkPub) uses a distinctive hybrid approach with a marker pubkey in P2MS outputs combined with protocol data in OP_RETURN outputs. Other minor protocols include Chancecoin and projects with identifiers TB0001, TEST01 and METROXMN. Additional hybrid OP_RETURN + P2MS protocols exist, such as "Protocol 47930" (with 0xbb3a marker) and CLIPPERZ. In addition, P2MS transaction outputs have been used for generic data storage, with prominent examples including the Bitcoin whitepaper PDF and the Wikileaks Cablegate files. Such examples demonstrate that P2MS can be used for arbitrary file storage without any standardised protocol layer.

What's next?

These technical approaches each make different tradeoffs between efficiency, permanence, and network impact. But understanding the mechanics is only part of the story - the critical question is: what is the actual scale and cumulative impact of these techniques on the Bitcoin network? Part 2 analyses historical trends and a snapshot of the UTXO set to quantify the magnitude of P2MS data carriage in Bitcoin.

Also be sure to check out the companion GitHub repo which includes a decode-txid utility that can be used to decode transactions involving P2MS outputs according to various protocol described above (including some support for generic data storage).

References

General

Academic Research

Changelog

2025-11-24: Added PPk

P2MS Data Carry Part 1: Fundamentals and Examples
